SPS-TL250

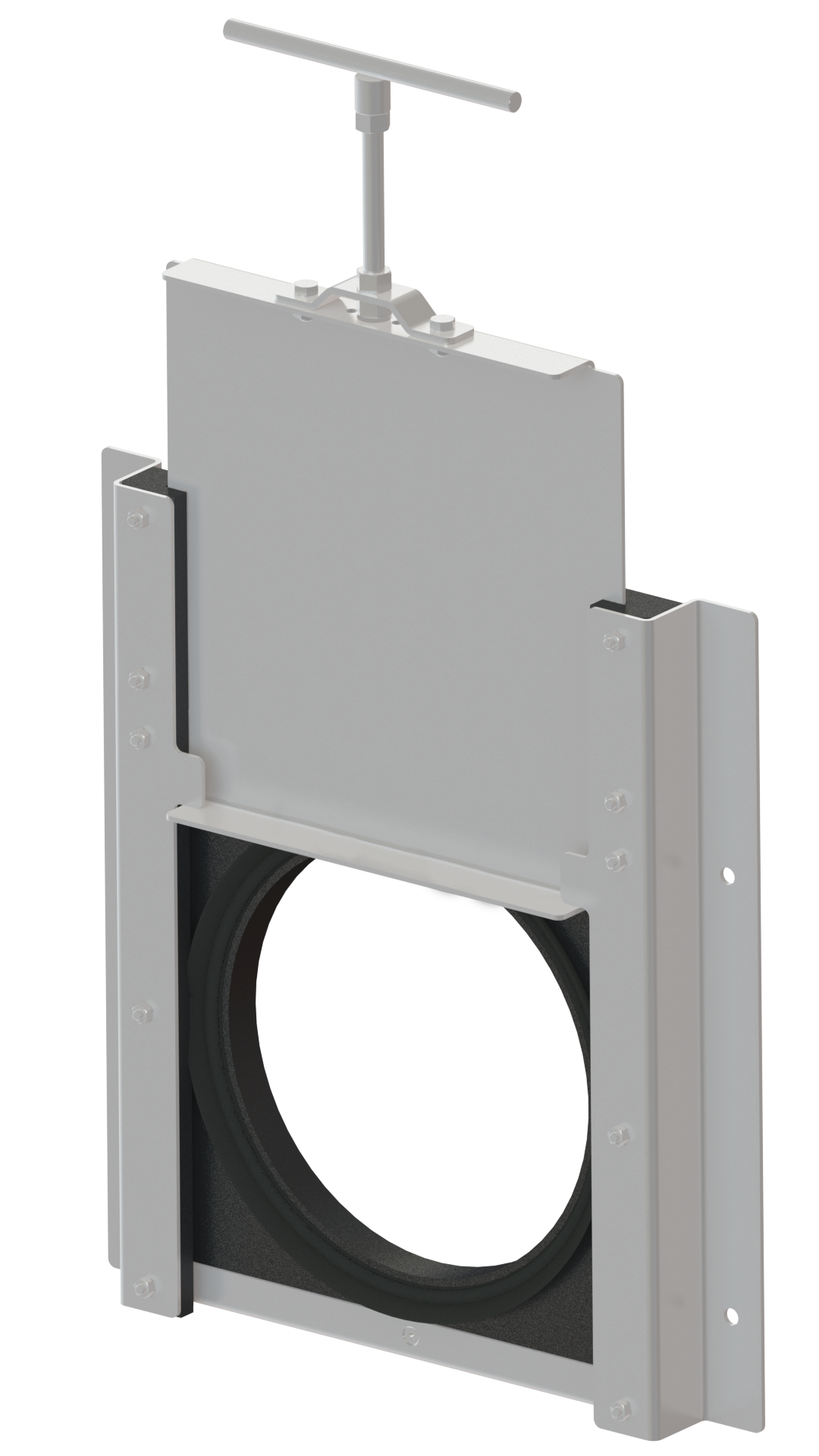

WaGate® Sluice Gate

Our sluice gates are used to regulate or shut off flows. WaGate sluice gates are available in a number of different adaptations. Examples of adaptations and advantages:



  • Adaptation with pipe outlet for through-flow through chamber wall
  • Available with domed flange
  • Available for two-sided pressure
  • Low operation and maintenance cost
  • Max pressure: up to 14 psi on reques
  • Non-rising spindle, reduces area required for gear
  • Non-welded parts. Easy cleaning and easy maintenance
  • Corrosion-proof and non-polluting HDPE, EDPM and 316 Stainless Steel. Sustainable products with no risk of deformation



WAGATE® SLUICE GATE
Technical specifications

The product is available in a number of different adaptations. See product information sheet for specific information, and to find the right solution for your requirements. Please feel free to contact us, and we’ll provide you with further assistance.



Download technical specification
Drawings
Drawings and technical specifications
Documents

We at Wapro believe in opportunities. By being an open organization, we can learn from our customers and share our experiences. Below you will find all the information about our products and also other useful and interesting information. Contact us if you are missing something.

Specifications
Nominal Pipe Size
NPS 10
Weight
22.00 lb
vcc
10.20 in
hcc
16.30 in
dg
2.60 in
Øb
0.40 in
#b
4
Inner Diameter
9.80 in
a
18.00 in
c
19.10 in
